What does Cubinote Pro's light mean? How to use the button?

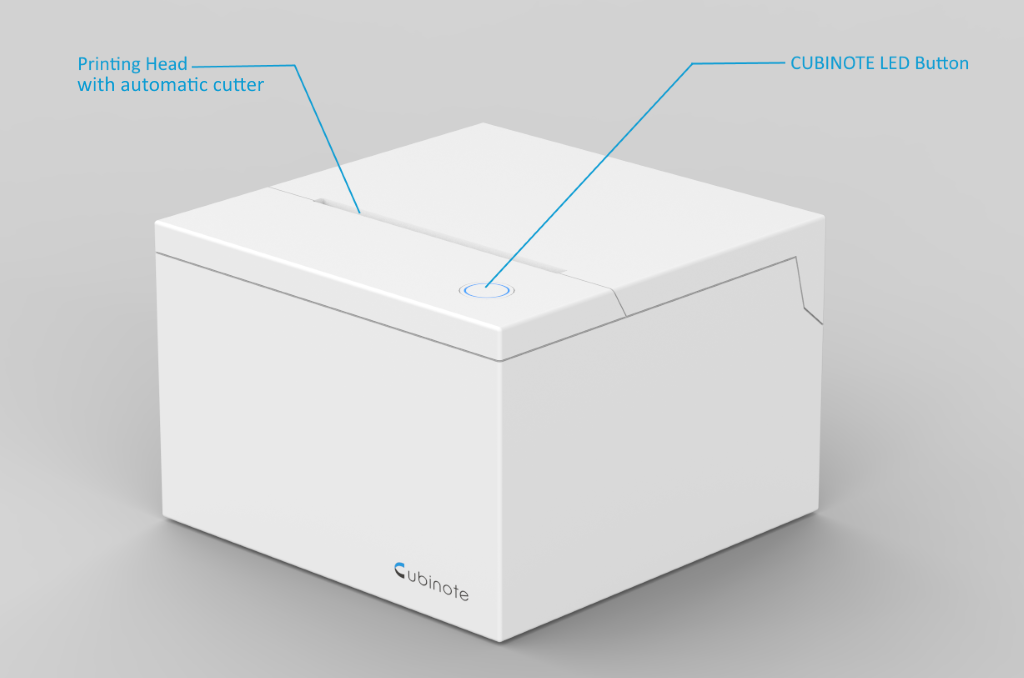

HOW TO USE CUBINOTE BUTTON
To bind/add a device: Press the button 2 times, then a QR code will be printed out, then scan the QR code to add the device
To print the diagnostic report: Press the button 2 times. From the diagnostic report, you can see the connection status and the device ID of your Cubinote
To enter/reset Wi-Fi configuration: Press the and hold the button for 6 seconds or more
To print the pre-set Quick Print Template: Press the button 1 time
To confirm that you receive an important message: Press the button 1 time
LIGHT COLOR INDICATION
Green light on: Cubinote is in Cloud printing mode and ready to be used
Green light slow flashing: Cubinote is in Wi-Fi configuration mode
Green light fast flashing: Cubinote is printing/trying to connect to a network. If your Cubinote keeps flashing, it means it's not connected to your Wi-Fi network, so try to re-configure the Wi-Fi setup to connect it to your Wi-Fi.
Pale green light: Cubinote has received an important note. Press the button once to confirm that the important note has been received and return Cubinote to standby mode
Red light: Cubinote is out of paper or the printing head is overheated
Light off: Power off or the light is manually turned off from Cubinote App Setting
